A complete range of electro pump sets

  • HPI offers a complete range of electro pump sets with flow rates from 0.25 to 30 cm3/rev.
  • Our exceptional HPI pump flow rates allow a high motor duty to be
  • Our exclusive range of motors in direct current (DC) & and alternating current (AC) micro electropump sets allows us to offer extremely compact units.
  • Our HPI units can also be equipped with hydraulic functions incorporated in the rear of the unit.

montage 6 2048 logo_mini groupe

Micro sets

Our HPI micro electro pump sets are available in direct current (DC) and alternating current (AC) versions with a flow rate range of

0.4 – 9.0 l/min. (12V and 24 V).

They have exclusive HPI motors providing both power and compactness. Coupled with series 0 pumps, these units have high output and duty with a peak pressure of 280 bar.

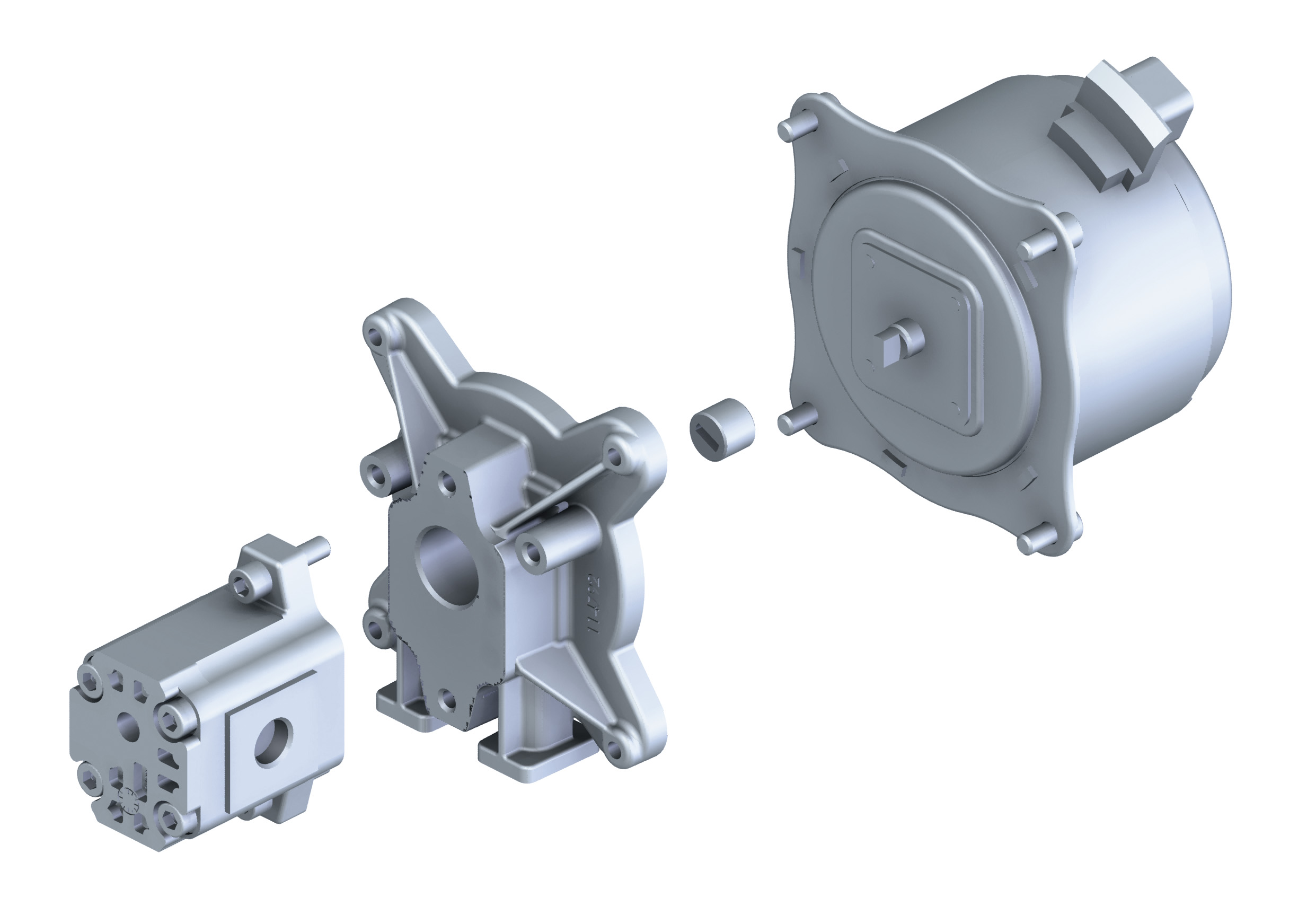

Micro electro pump set3G-MOT MF

Mini sets

HPI mini electro pump sets are available in direct current (DC) and alternating current (AC) versions wth a flow rate range of

  • 1 – 25 l/min. (12V and 24 V)

Compact coupling results in overall dimensions to be minimized, while offering a wide range of motor choices. Coupled with series 1 pumps, these units have a high output and duty, with a peak pressure of 300 bar.

We also offer electro pump sets equipped with series 2 pumps which can supply a flow rate from 7,6 to 52.2 l/min. with direct current (DC) or alternating current (DC) – please consult us.

.

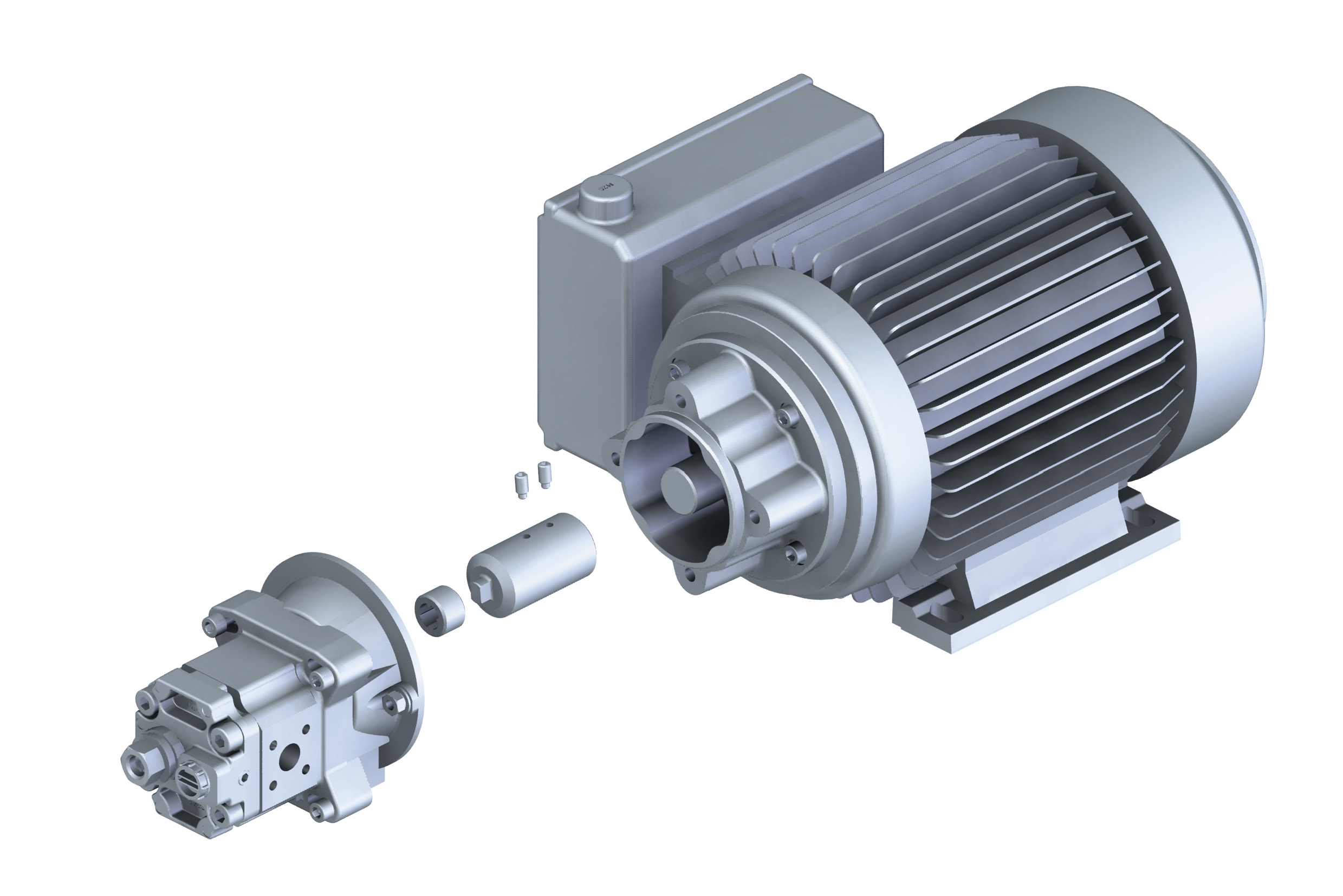

support-mini electro pump set

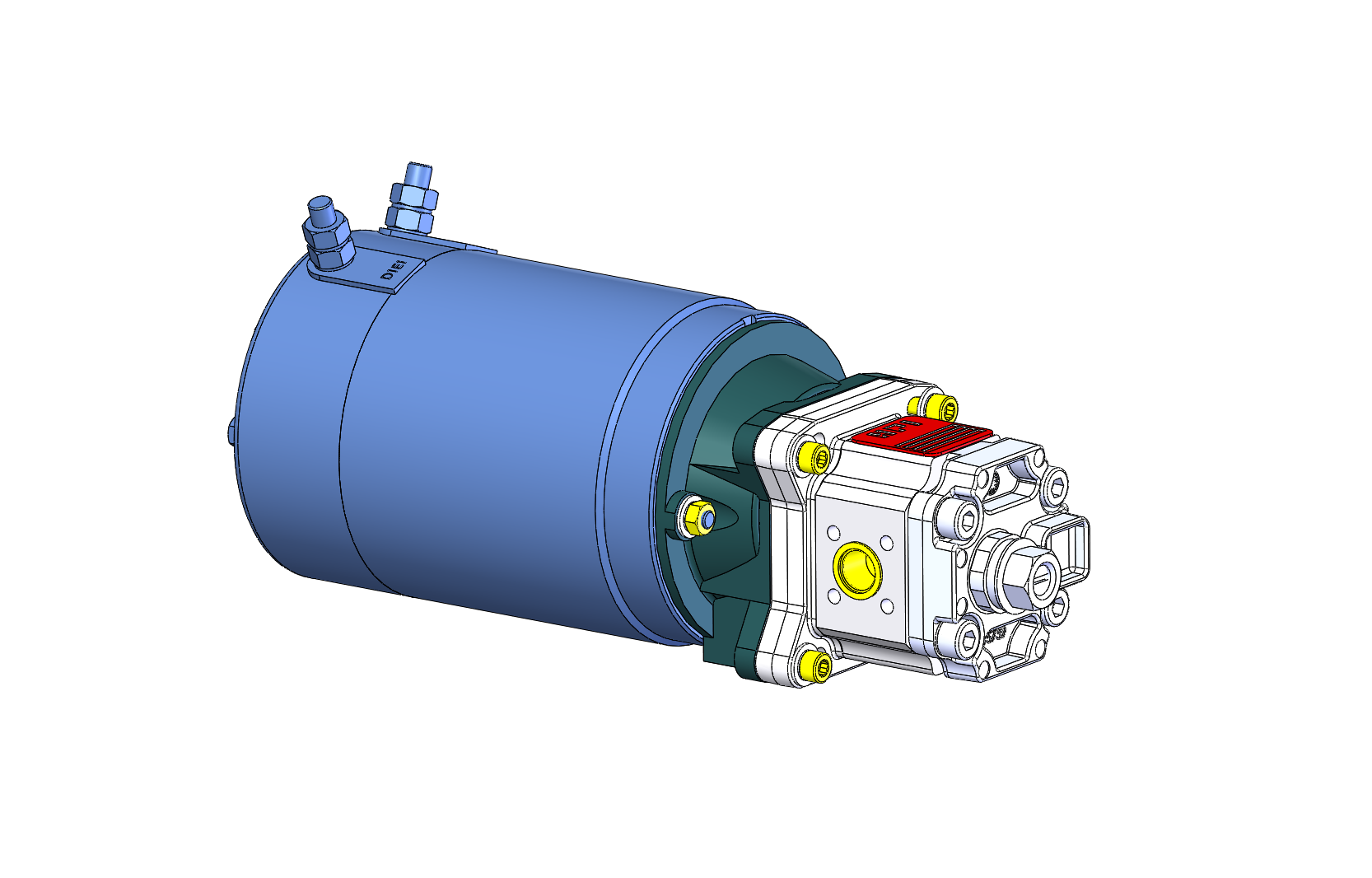

Functions on rear body

Our electro pump sets can also be equipped with functions on the rear of the unit such as:

  • Pressure relief valve
  • Decompression poppet valve
  • Anti return check valve, etc…

MNG fonction sur CAR
